SYNERTIAL





dfdfdf



CS-2200

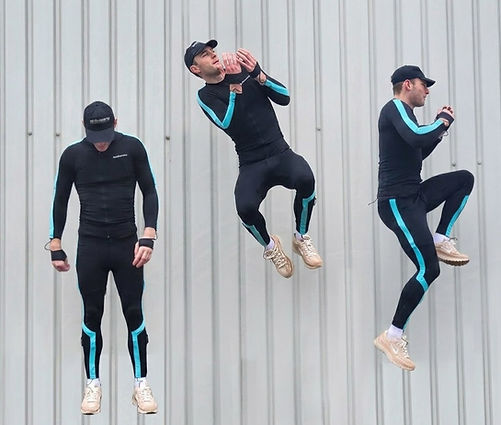

IGS-Cobra Wireless Suit (18 Sensor Suit with 2 spares that can be used as prop sensors)

22 sensors in total.

dfdfdf

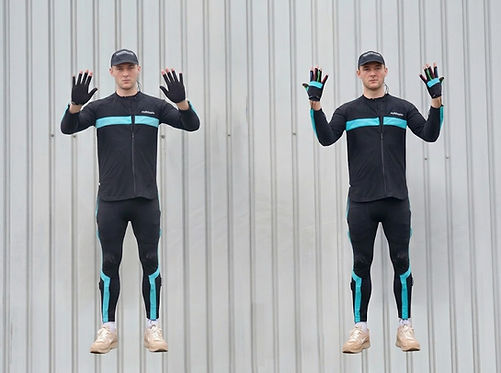

CB-3600

IGS-Cobra Wireless Suit & Gloves Bundle (CS-2200 Suit Bundled with a Pair of 7-Sensor Gloves)

36 sensors in total.

dfdfdf



CB-4800

IGS-Cobra Wireless Suit & Gloves Bundle (CS-2200 Suit Bundled with a Pair of 13-Sensor Gloves)

48 sensors in total.

dfdfdf

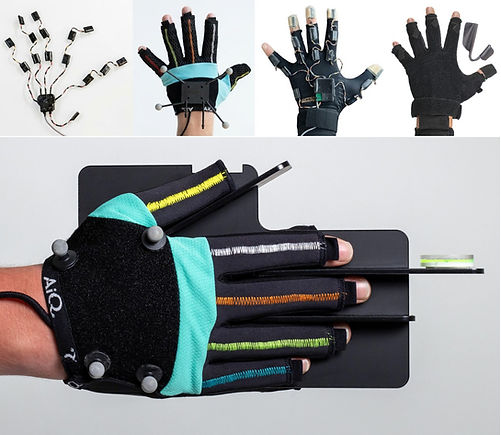

CB-5400

IGS-Cobra Wireless Suit & Gloves Bundle (CS-2200 Suit Bundled with a Pair of 16-Sensor Gloves)

54 sensors in total.

Realtime time capture inside Unity

Real time capture inside SynDash

Real time fingers and body capture in Unreal

Siggraph 2016

IGS-Cobra Motion Capture

Cobra Suit Promo

22, 36, 48 and 54 sensors

  • 8.3 ms System Latency
  • Native support for Animate, Motionbuilder, Unity and Unreal
  • Optical Rig integration (Vicon, Motion Analysis, Optitrack, PhaseSpace)
  • Unsurpassed Magnetic Immunity (UMI)
  • Quick and easy to put on and take off
  • USB 2.0 or WiFi 2.4 Ghz connectivity
  • Automatic Sensor Calibration


Capture data that is invisible to other systems

  • Separate shoulder and clavicle sensors for accurate arm reach
  • Three or four spine links measure spine articulation more accurately
  • Extra sensor for object or extra spine link


More Sensors

  • Standard suit has 22-sensors,

  • Up to 54 sensors

  • Wired or wireless

  • Superior attachment offering the greatest accuracy and comfort

Smaller Sensors

  • Smallest, lightest IMU's (Inertial Masurement Units).

  • More comfortable when rolling

  • 11 x 28 x 4 mm (4.5 grams)

Precision Calibration

  • Kinexact software calculate the body's skeletal and finger measurements

  • Accurate skeleton provides accurate motion

  • Accurate and repeatable capture data.

Suit Versions

  • Full CS-2200

  • Upper CSU-1400

  • Lower CSL-700

  • Custom Configurations

TECHNICAL SPECIFICATION

CONNECTIVITY

  • Wired Connectivity: 2m USB Cable
  • Wireless Connectivity: 20m range with provided router

IN THE CASE

  • 1 x Main Processing Unit
  • Software and Drivers
  • 1 x Wireless Router (Wireless option only)
  • 1 x Rechargable Battery (Wireless option only)

SENSOR

  • 12dx Micro IMU
  • On-Board Gyroscope, Accelerometer and Magnetometer
  • Internal Update rate: 500Hz
  • Gyro Range: 2 000 degrees/sec
  • Accelerometer range: 2, 4, 8 or 16 G
  • Dimensions: 16mm x 10mm x 3,5mm

SYSTEM REQUIREMENTS

  • Windows XP, Vista, 7 (32 or 64 bit)
  • Intel i5 CPU or equivalent
  • 1GB RAM
  • 1GB free hard drive space

DIMENSIONS

  • Hand Size: Unlimited
  • Wired MPU: 65mm x 35mm x 15mm
  • Wireless MPU: 100mm x 65mm x 20mm
  • Battery: 125mm x 75mm x 22mm (Wireless option only)

DATA OUTPUT

Direct link to

  • Siemens Jack and PSH
  • Dassault Delmia and Catia
  • Autodesk Motionbuilder
  • IGS-BIO
  • MatLab
  • 30 and 60 frames per second capture
